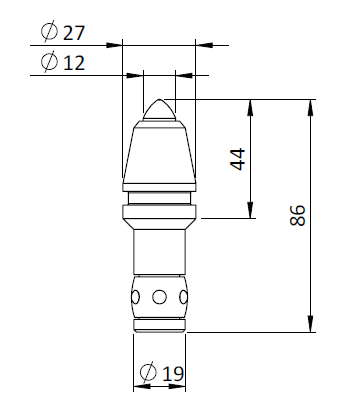

044-19-120PA

Typical usage: small augers and drilling buckets

Carbide: small

Shank: Ø19 straight

Retention: wedding band clip

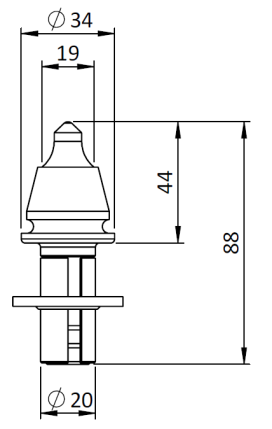

044-20-190PA

Typical usage: road milling

Carbide: medium cap tip

Shank: Ø20 straight

Retention: wedding band clip

With wear ring

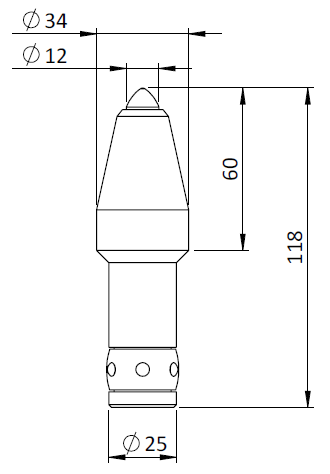

060-25-120PA

Typical usage: medium augers and drilling buckets

Carbide: small

Shank: Ø25 straight

Retention: wedding band clip

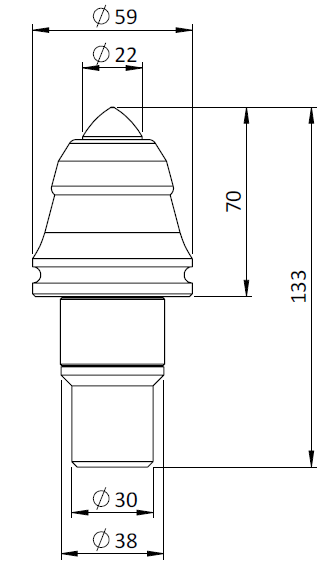

070-38-220PA

Typical usage: large augers and drilling buckets

Carbide: large

Shank: Ø30/38 stepped

Retention: wedding band clip

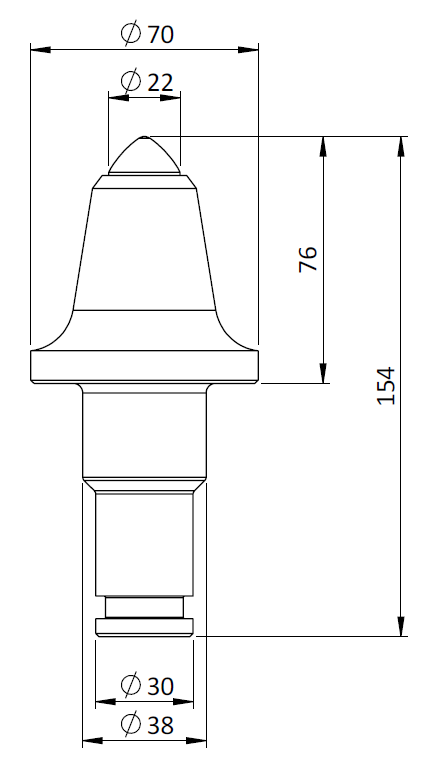

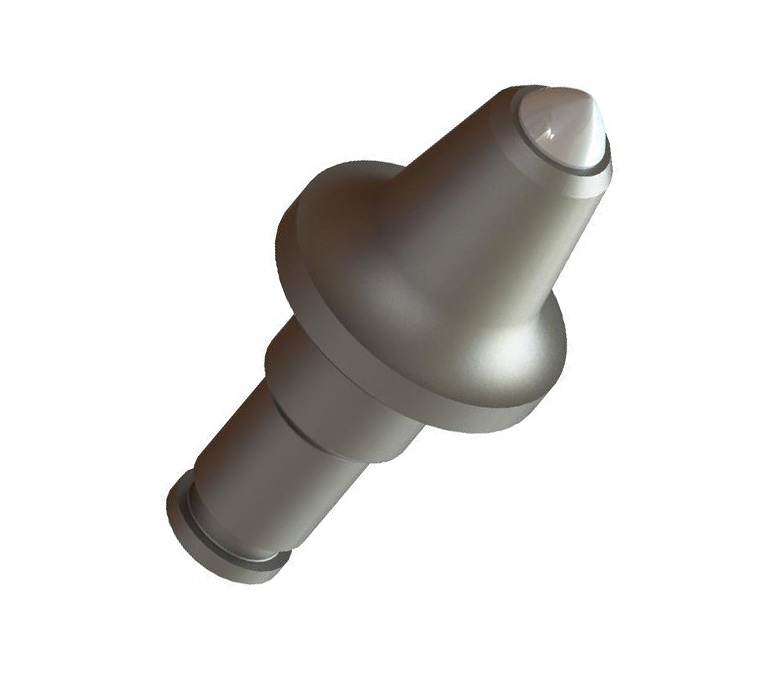

076-38-220PA

Typical usage: road milling

Carbide: large

Shank: Ø30/38 stepped

Retention: clip

For hard conditions

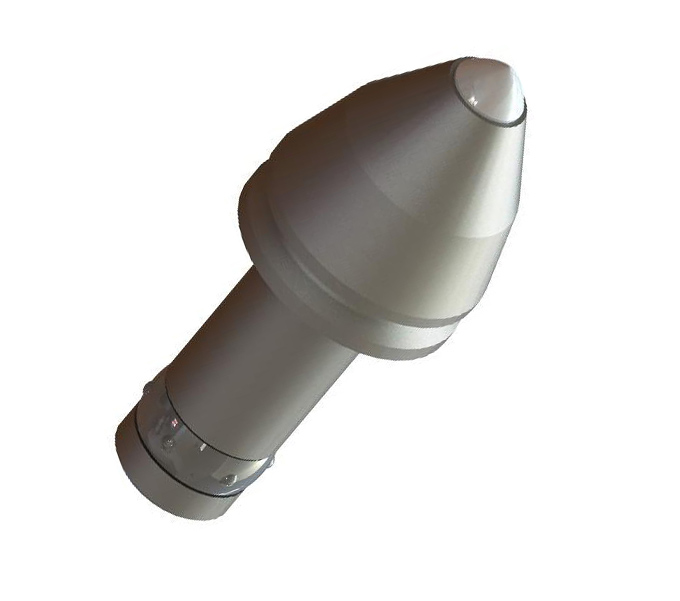

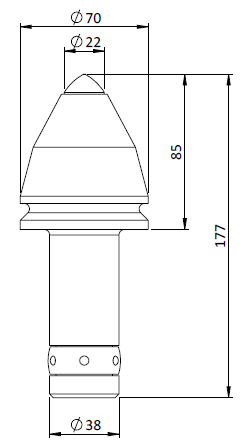

085-38-220PA

Typical usage: road milling, Sandvik machinery

Carbide: large

Shank: Ø38 straight

Retention: wedding band clip

For hard conditions

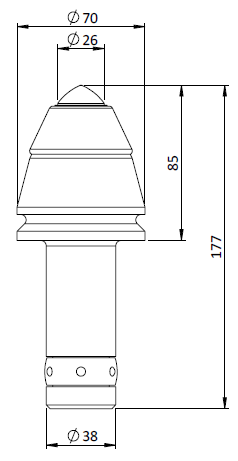

085-38-260PA

Typical usage: road milling, Sandvik machinery

Carbide: extra large

Shank: Ø38 straight

Retention: wedding band clip

Hard facing around tip

For high abrasion

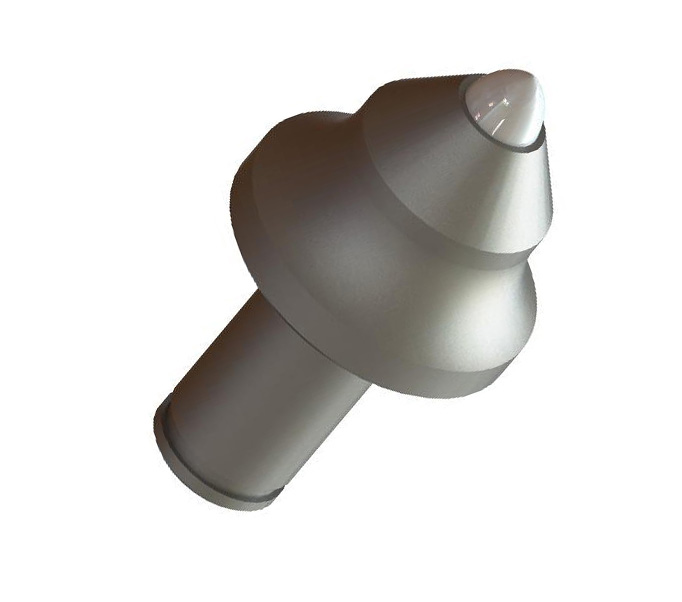

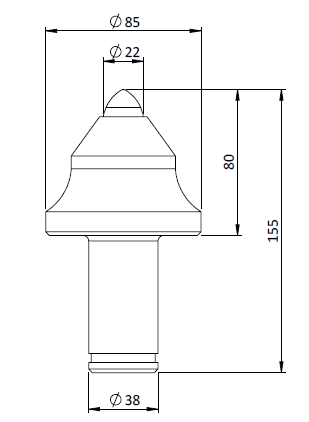

085-38-222PA

Typical usage: road milling, Mitsui machinery

Carbide: large mushroom

Shank: Ø38 straight

Retention: clip

Extra-large skirt

For hard conditions

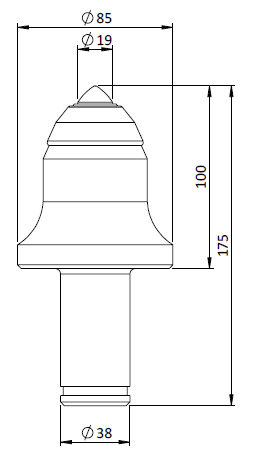

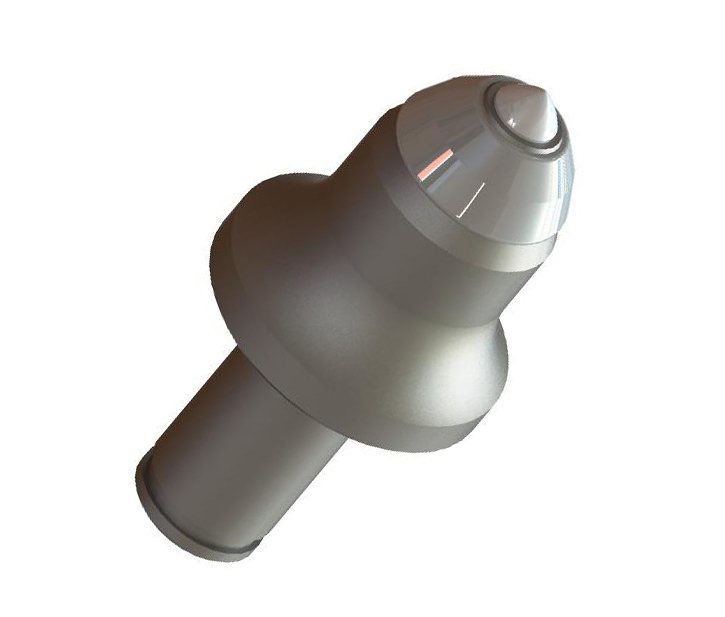

100-38-190PA

Typical usage: road milling, Mitsui machinery

Carbide: medium parallel

Shank: Ø38 straight

Retention: clip

Extra-large skirt

Hard facing around tip

For high abrasion conditions

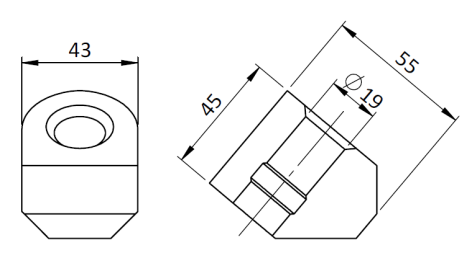

13800TH

Sleeveless tool holder, for small augers and drilling buckets

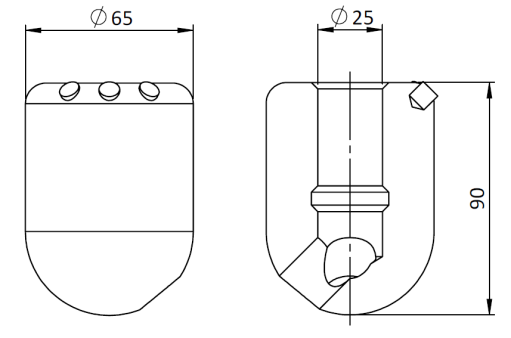

14800TH

Sleeveless cylindrical tool holder with carbide inserts, for medium augers and drilling buckets

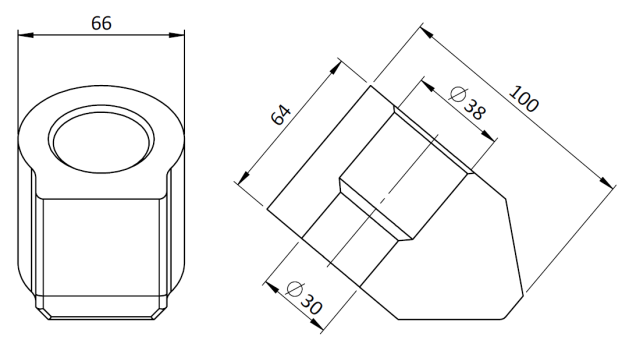

15800TH

Sleeveless tool holder, for large augers and drilling buckets

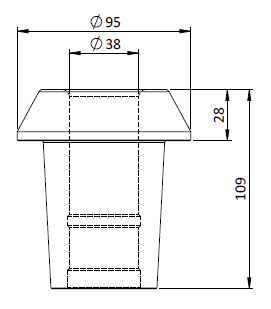

16801SL

Press fit sleeve, to suit Sandvik machinery

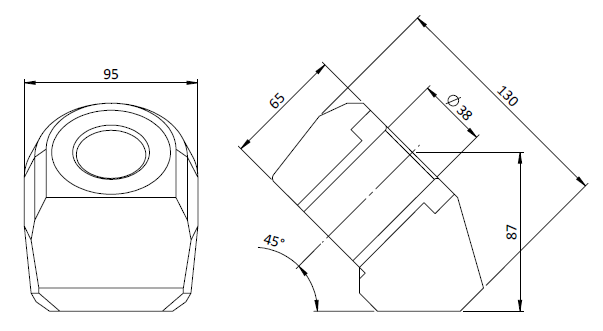

09800TH + 17801SL

Tool holder and press fit sleeve, to suit Mitsui machinery
