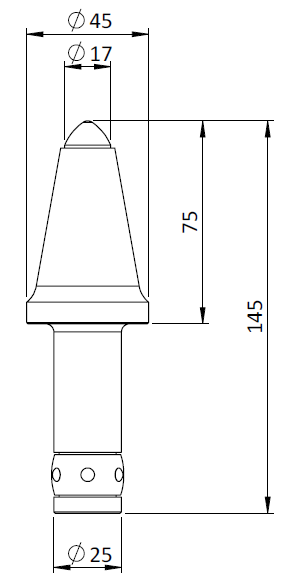

075-25-170PA

Typical usage: bord-and-pillar coal production, access roads

Carbide: small mushroom

Shank: Ø25 straight

Retention: wedding band clip

High penetration and cutting efficiency in soft to medium conditions

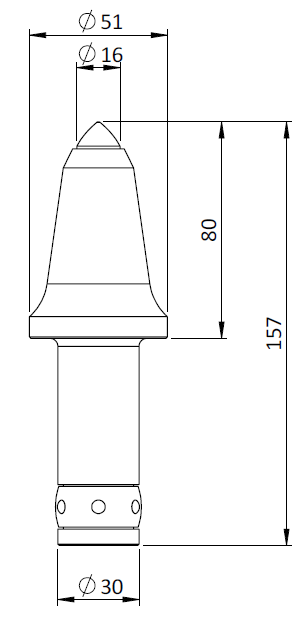

080-30-160PA

Typical usage: bord-and-pillar coal production, access roads

Carbide: small parallel

Shank: Ø30 straight

Retention: wedding band clip

For medium to hard conditions or complex strata

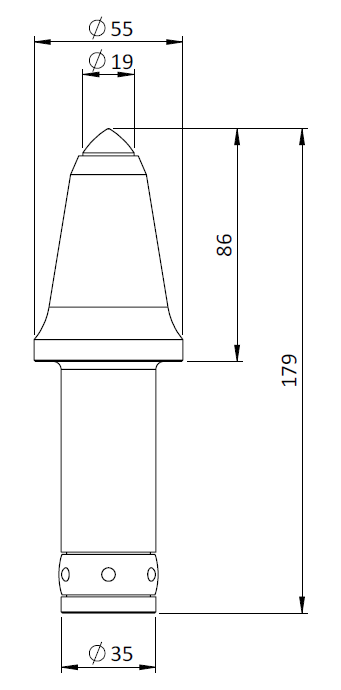

086-35-190PA

Typical usage: bord-and-pillar coal production, access roads

Carbide: medium parallel

Shank: Ø35 straight

Retention: wedding band clip

High impact and wear resistance, for hard conditions or stone

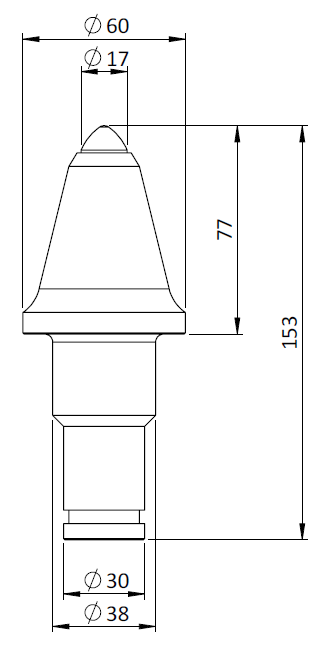

077-38-170PA

Typical usage: bord-and-pillar coal production, access roads

Carbide: medium parallel

Shank: Ø30/38 stepped

Retention: wedding band clip

For extreme conditions

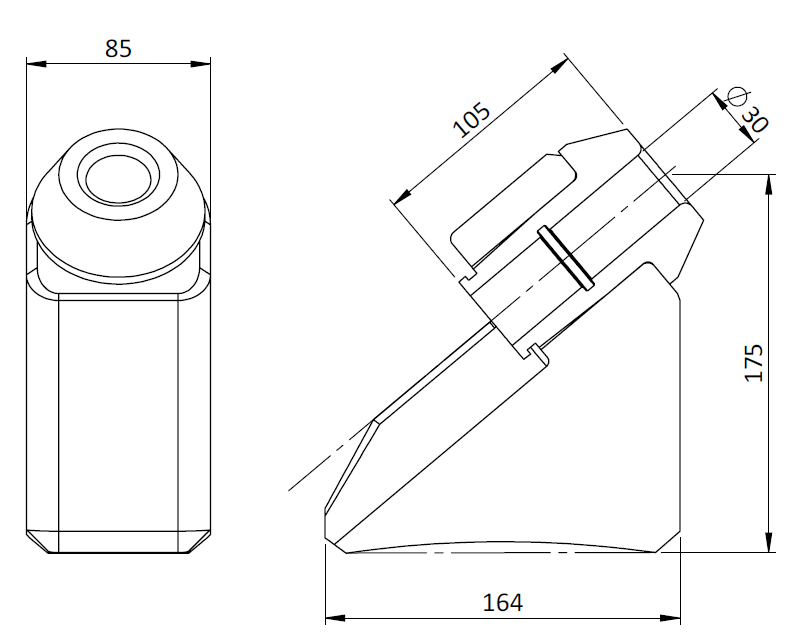

10800TH + 18801SL

Light duty, high penetration, circlip retention sleeve

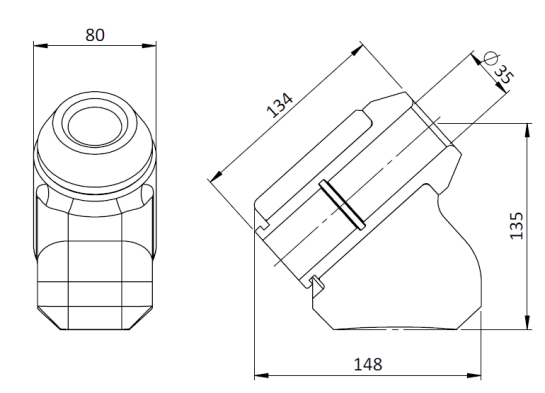

11800TH + 19801SL

Medium duty, medium penetration, circlip retention sleeve

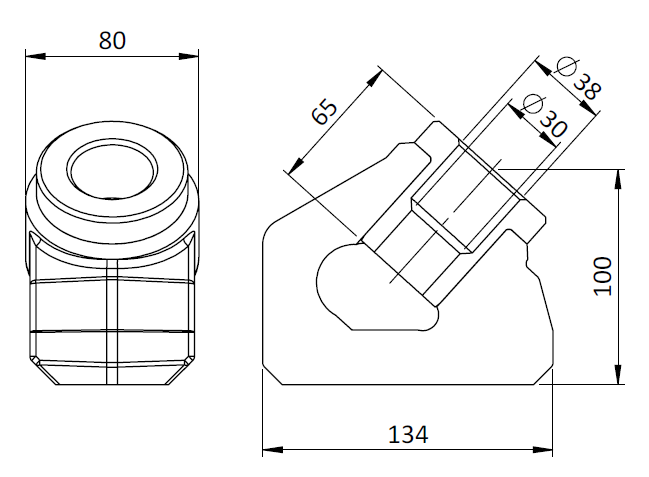

12800TH + 20801SL

Heavy duty, low penetration, pressed sleeve
