POINT ATTACK TOOLS (SAMPLE OF RANGE)

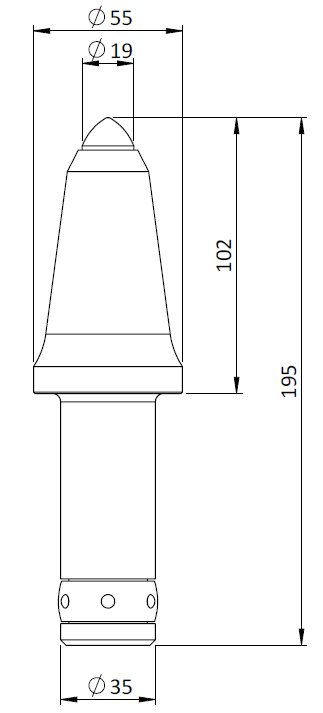

102-35-190PA

Typical usage: coal production, light to medium conditions

Body: shaped for optimal loading and reduced dust

Carbide: small parallel

Shank: Ø35 straight

Retention: wedding band clip

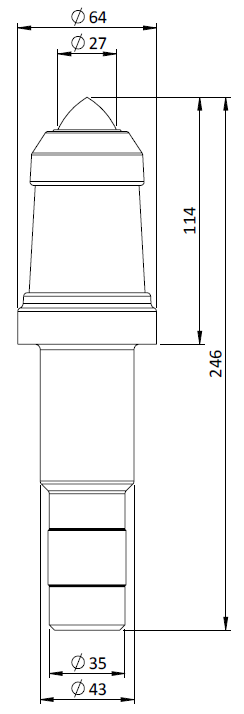

114-43-270PA

Typical usage: tough conditions, cutting through stone/faults/inclusions

Body: shaped for optimal

strength in tough conditions, hard facing for extra abrasion resistance

Carbide: extra-large mushroom

Shank: Ø35/43 stepped

Retention: wedding band clip

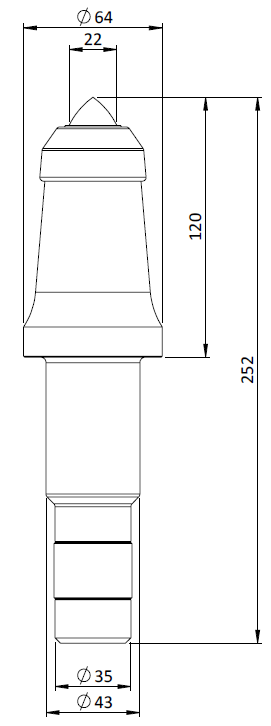

120-43-220PA

Typical usage: coal production, medium conditions

Body: shaped for optimal loading and reduced dust, hard faced around tip for extra life

Carbide: medium mushroom

Shank: Ø35/43 stepped

Retention: wedding band clip

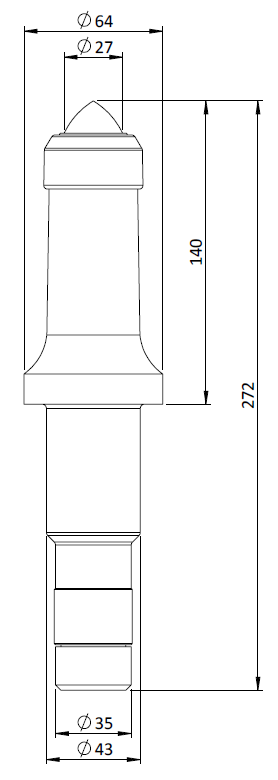

140-43-271PA

Typical usage: coal production, medium conditions

Body: shaped for optimal loading and reduced dust, hard faced around tip for extra life

Carbide: extra-large mushroom

Shank: Ø35/43 stepped

Retention: wedding band clip
POINT ATTACK SLEEVES (SAMPLE OF RANGE)

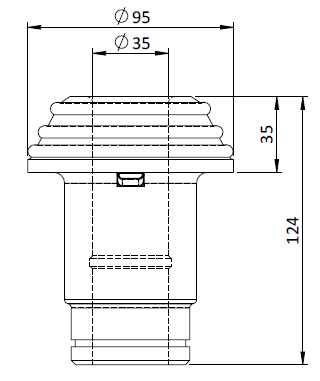

09801SL

Typical usage: Ø35 straight shank wedding band retention tools, Pocketed system

Body: shaped for optimal loading and reduced dust, hard faced around shank for increased life

Retention: heavy duty circlip
11801SL

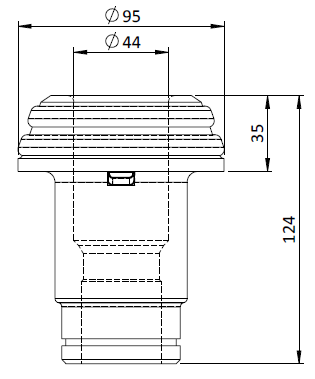

Typical usage: Ø35/43 stepped shank wedding band retention tools, Pocketed system

Body: shaped for optimal loading and reduced dust, hard faced around shank for increased life

Retention: heavy duty circlip

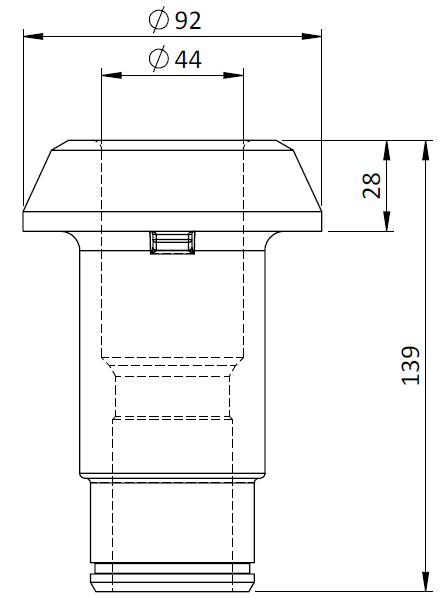

15801SL

Typical usage: Ø35/43 stepped shank wedding band retention tools, pedestal system

Body: shaped to suit industry standard pedestal system

Retention: heavy duty circlip
POINT ATTACK TOOLHOLDERS (SAMPLE OF RANGE)
06800TH

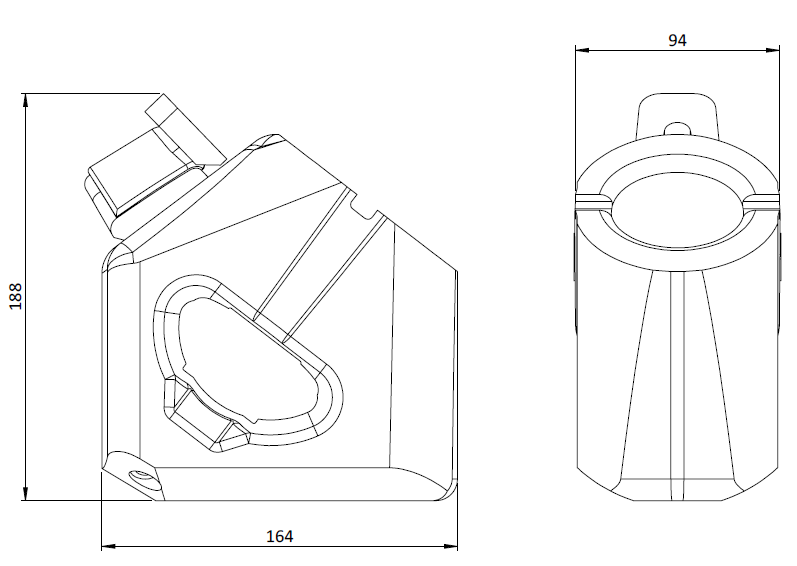

Heavy duty Pocketed Point Attack tool holder
03800TH

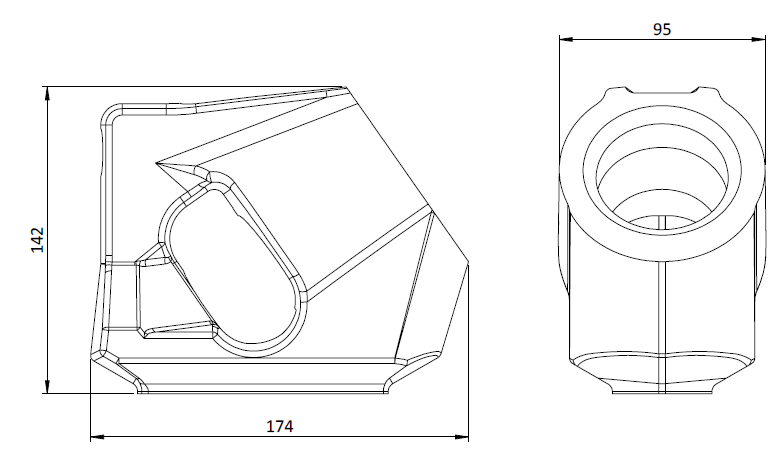

Industry standard pedestal tool holder

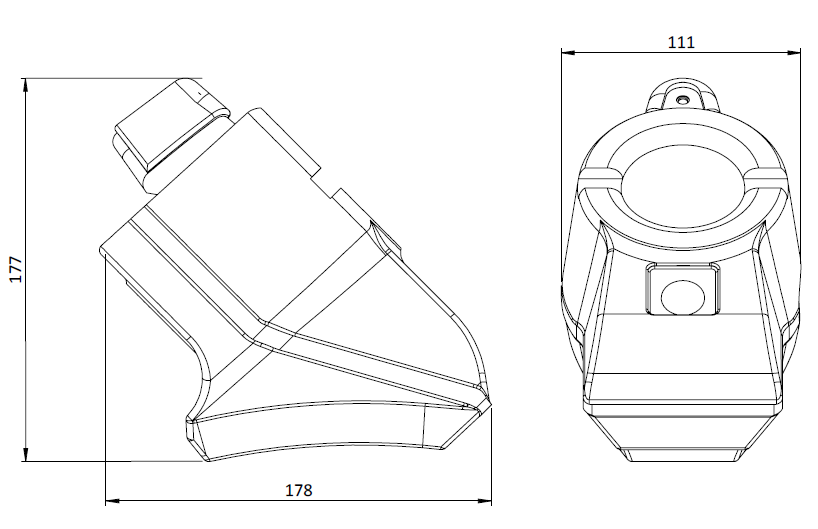

07800TH

Industry standard pedestal tool holder with Tiga spray body
POINT ATTACK SPRAYS (SAMPLE OF RANGE)
12004PS

Compatibility: all Tiga Point Attack tools

Certification: certified to industry standard, British Coal Codes and Rules for Pick Back lushing (PBF) sprays

Spray type: solid cone

Typical flow: 2.5L/min at 13 bar
POINT ATTACK TOOL RETENTION
05650RD

Heavy duty circlip for sleeve retention

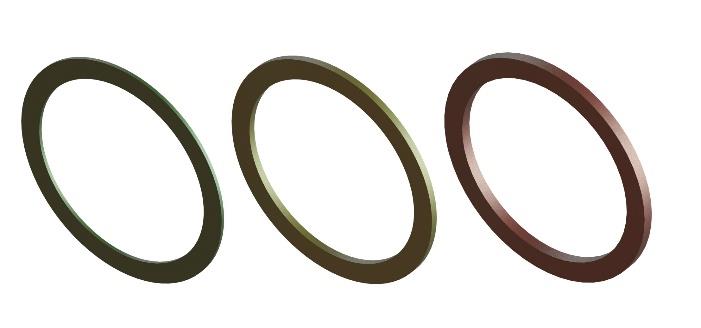

Oversized shims

Designed to accommodate bearing wear on the face of the tool holder

11650RD – green, wear level 1

12650RD – yellow, wear level 2

13650RD – red, wear level 3

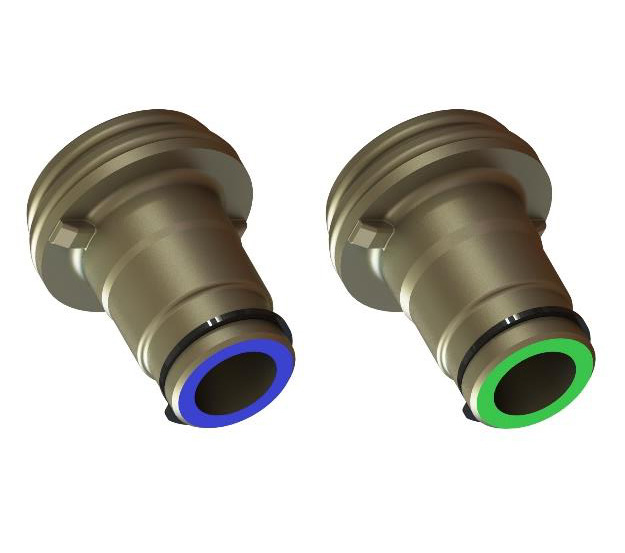

Oversized sleeves

Designed to accommodate bearing and radial wear in the toolholder

13801SL – blue, wear level 1

14801SL – green, wear level 2
POINT ATTACK SYSTEM REMOVAL TOOLS

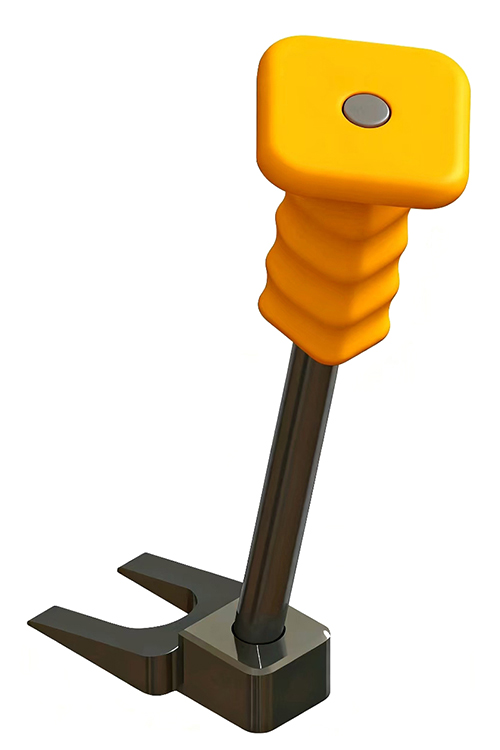

26901MT

35mm Point attack pick removal tool

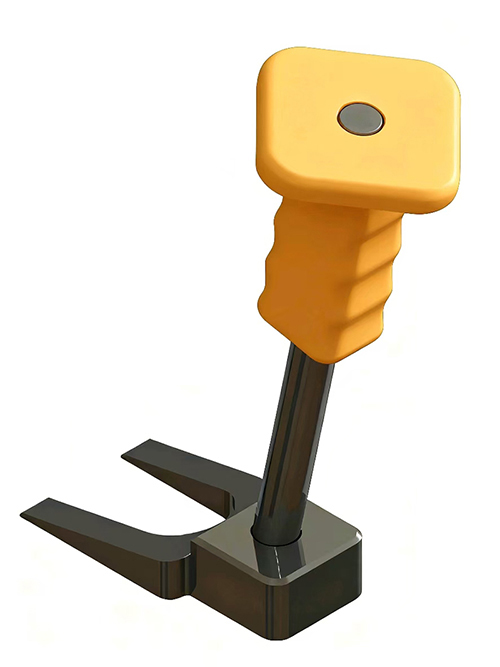

31901MT

43mm Point attack pick removal tool

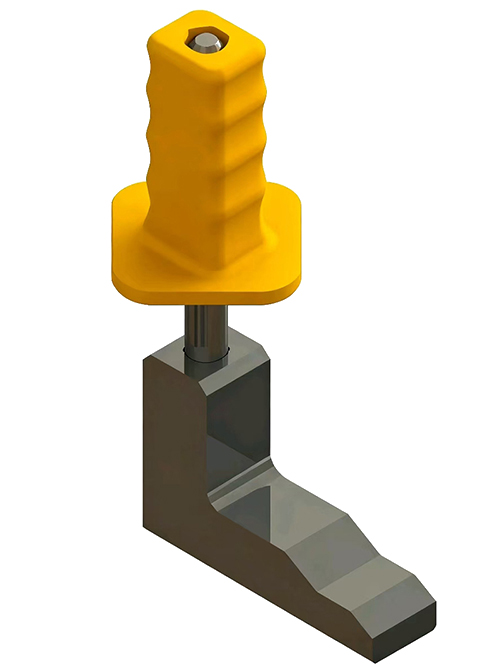

32901MT

Sleeve removal drift
04901MT

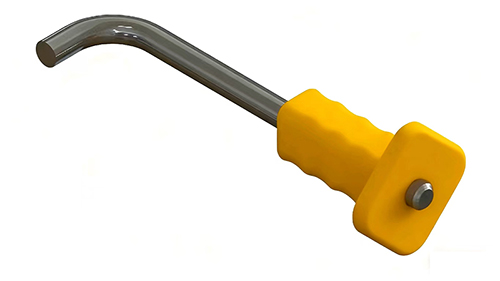

Pick removal bar

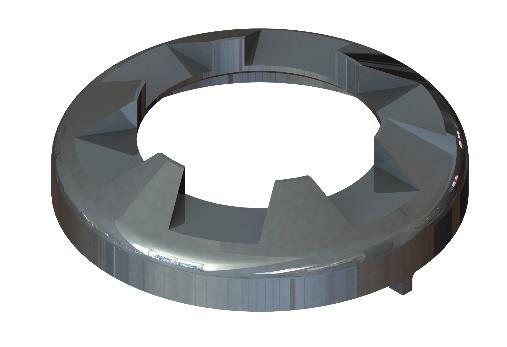

56901MT

Circlip alignment tool
20901MT

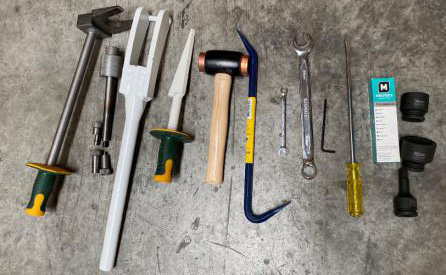

Point Attack tool kit in Tiga bag. Includes the above tools as well as general tooling as required (hammer, crow bar, screwdrivers, sockets, O-Ring grease, etc.)
EXPANDED POINT ATTACK TOOL RANGE (SHEARER DRUMS)
Part NumberDescription Gauge Abrasion ProductionStone
mm<50MPa 50-100MPa>100MPa
102-35-190PA 19mm carbide, straight shank 102 Low
102-35-250PA 25mm carbide, straight shank, hard facing 102 Medium
114-43-250PA 25mm carbide, stepped shank 114 Low
114-43-270PA 27mm carbide, stepped shank, hard facing x 2 114 High
120-43-220PA 22mm carbide, stepped shank, hard facing 120 Medium
140-43-270PA 27mm carbide, stepped shank 140 Low
140-43-271PA 27mm carbide, stepped shank, hard facing 140 Medium
140-43-272PA 27mm carbide, stepped shank, hard facing x 2 140 High
Cutting condition usage guide Use with Confidence Use with Caution
Many more configurations available, including customised
