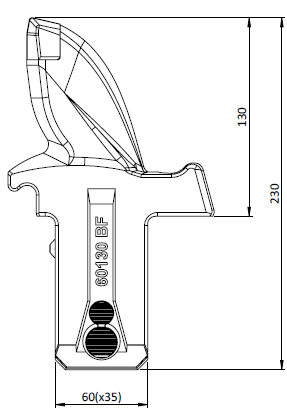

60130BF

Typical usage: coal production, light to medium conditions

Body: shaped for optimal loading and reduced dust, shear plane

Carbide: extra-large laid-on tip for increased wear life

Shank: 60x35 heavy duty for extended pick life

Retention: rib-lock with anti-vibration button

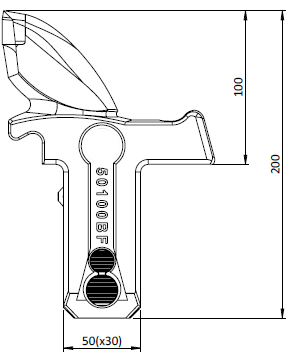

50100BF

Typical usage: sumping

Body: shaped for reduced dust, shear plane

Carbide: large laid-on tip

Shank: 50x30 standard duty

Retention: rib-lock with anti-vibration button

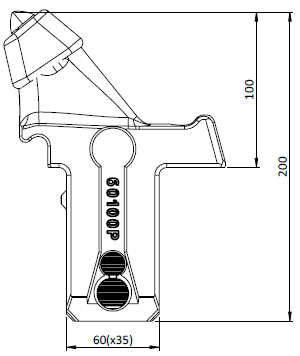

60100P

Typical usage: tough conditions, cutting through faults/inclusions

Body: shaped for optimal strength in tough conditions

Carbide: slug tip

Shank: 60x35 heavy duty for extended pick life

Retention: rib-lock with anti-vibration button

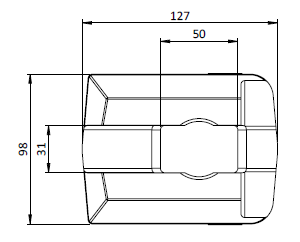

05700TH

Standard duty tool holder. Used in wet and dry configurations as required.

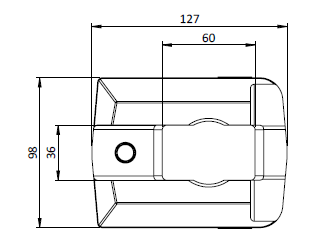

08700TH

Heavy duty tool holder.

Used in wet and dry configurations as required

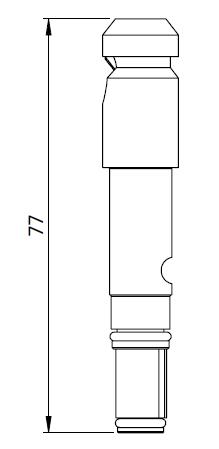

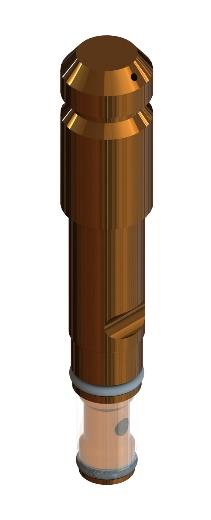

12100RS

Compatibility: 100mm radial tools

Certification: certified to industry standard, British Coal Codes and Rules for sprays

Spray type: solid cone

Typical flow: 2.4L/min at 12 bar

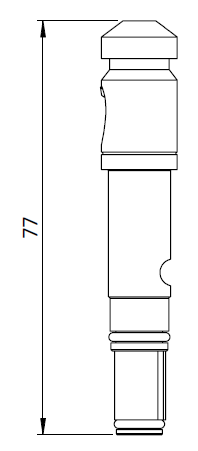

12130RS

Compatibility: 130mm radial tools

Certification: certified to industry standard, British Coal Codes and Rules for sprays

Spray type: solid cone

Typical flow: 2.2L/min at 12 bar

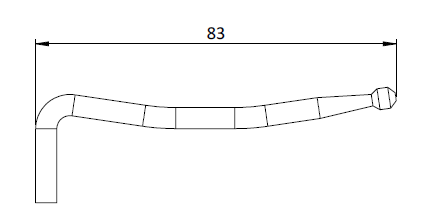

02100RS

Radial spray retention pin

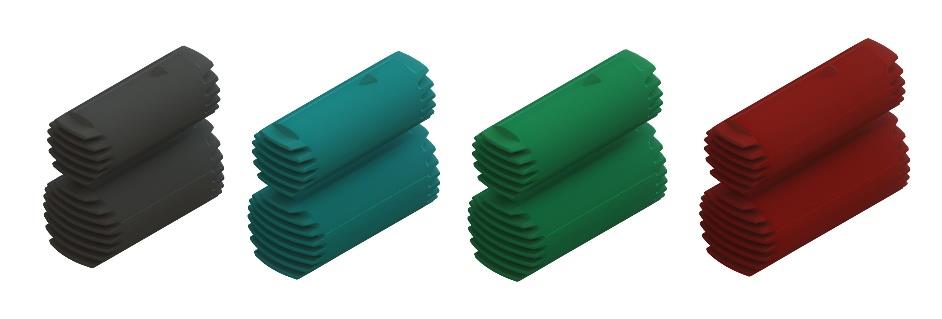

Rib-locks

Various sizes available, including:

01650RD – black, standard duty toolholders, new

02650RD – blue, standard duty toolholders, worn

03650RD – green, heavy duty toolholders, new

04650RD – red, heavy duty toolholders, worn
